Year of manuf: 2017

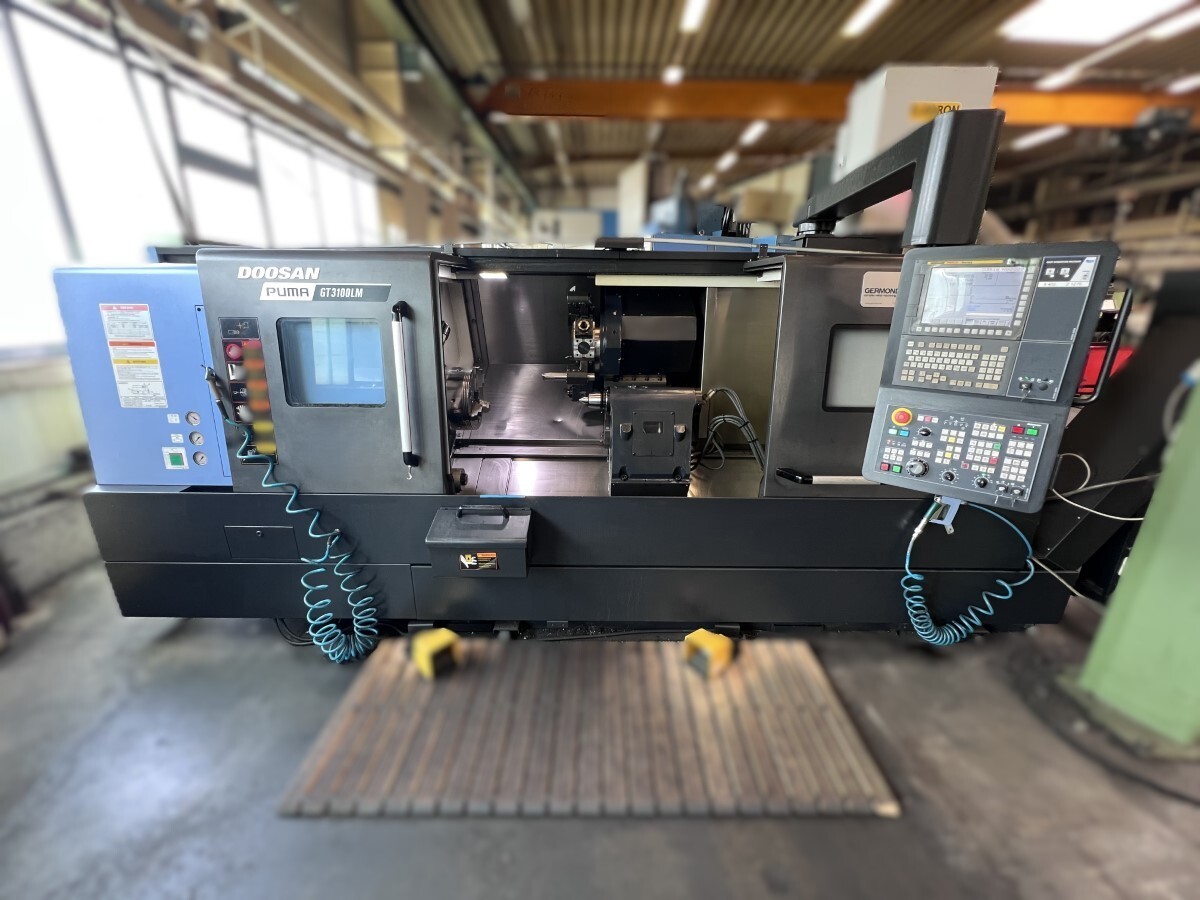

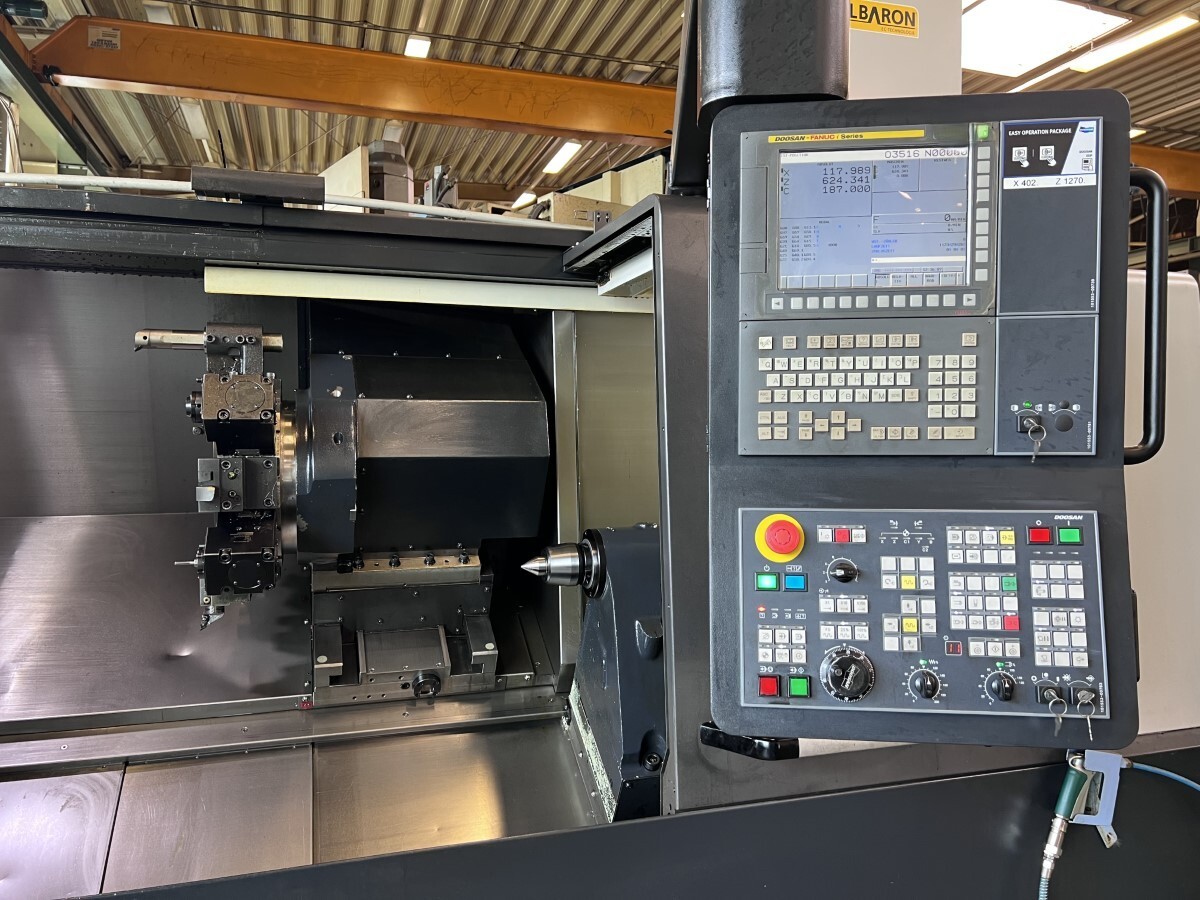

Control: Fanuc 0i-TF
Turning diam.
[mm] 376
Turning length
[mm] 1245
Mainspindle:
Belt-driven spindle
Speed (max.)
2.800 rpm
Power (max.)
22 kW
Torque (max.)
1.124 Nm
Barcapacity
102 mm

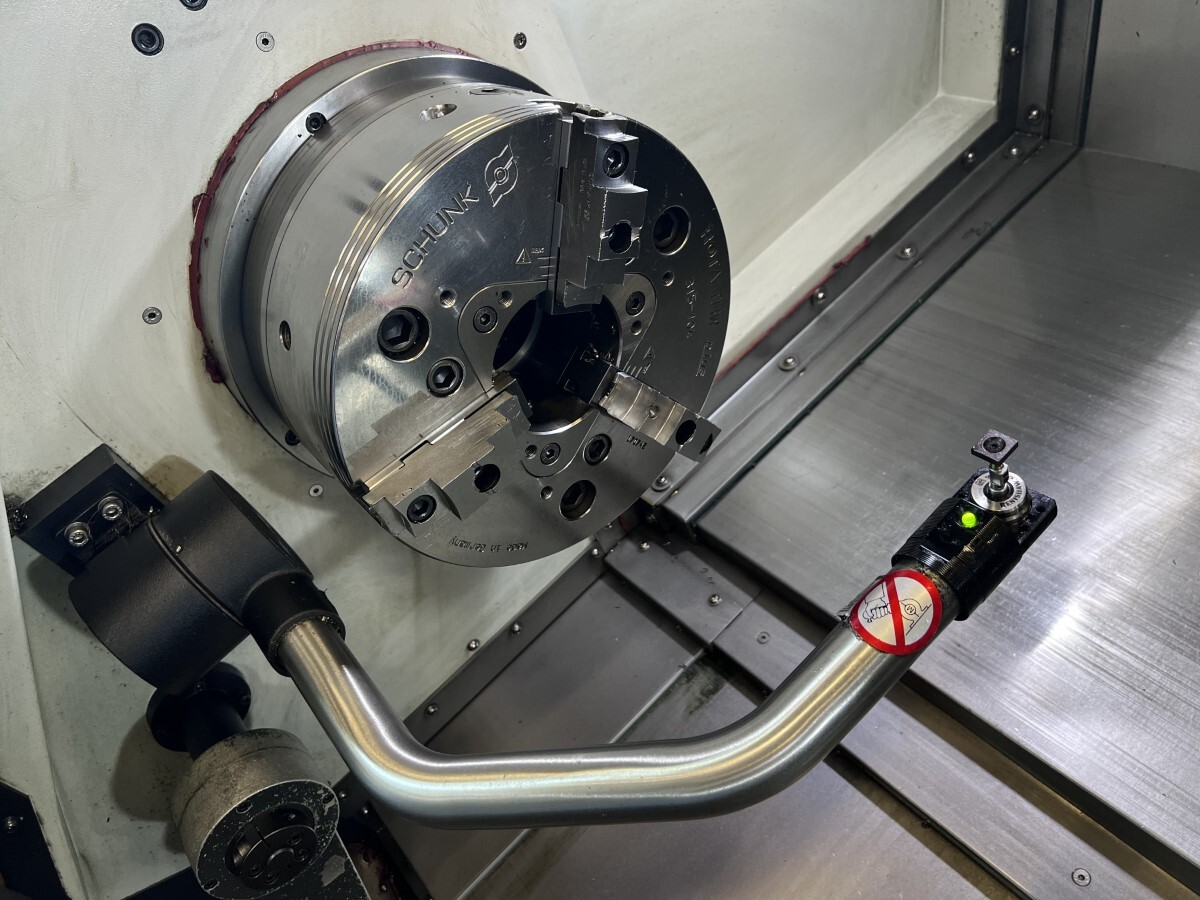

Workpiececlamping
3-Jaw chuck, Schunk ROTA THW plus 315-104
Toolcarrier (X/Z):
Technology:

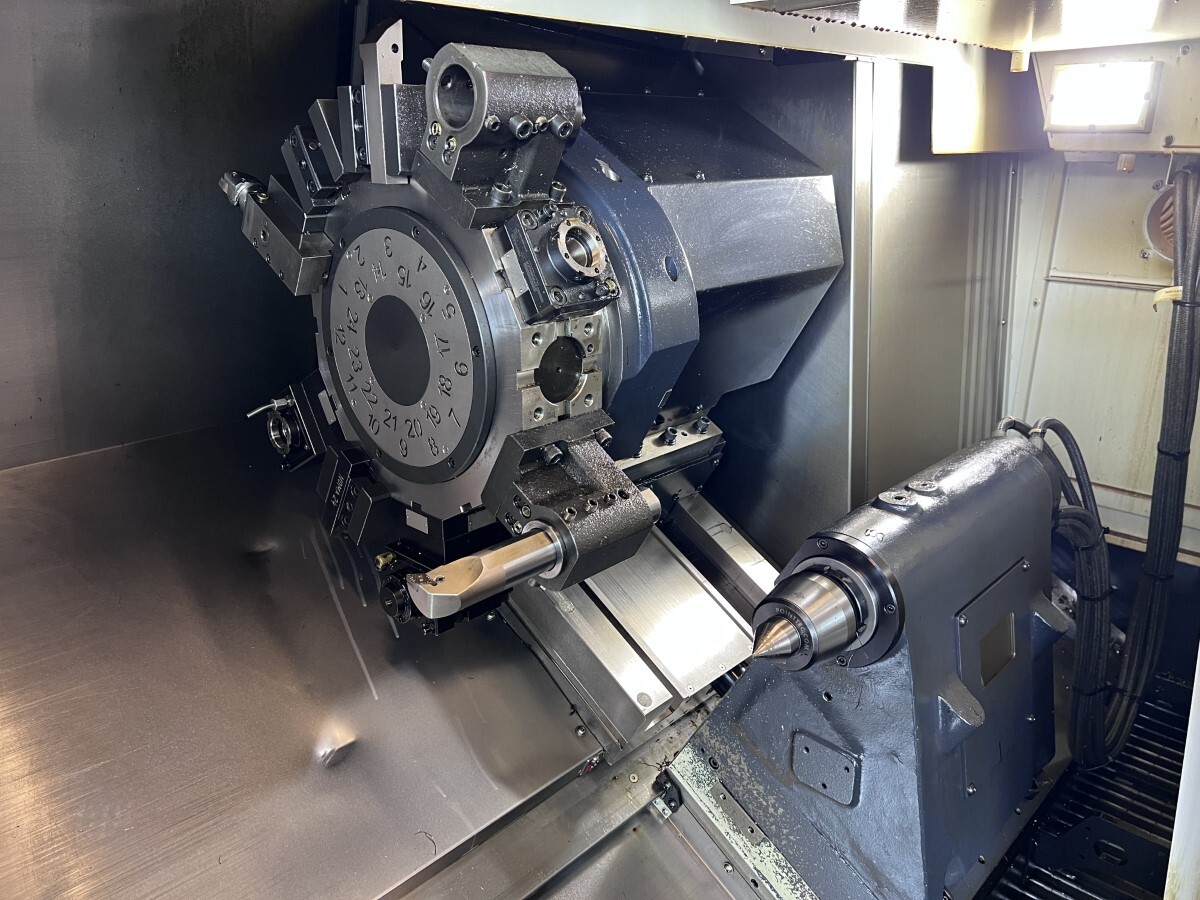

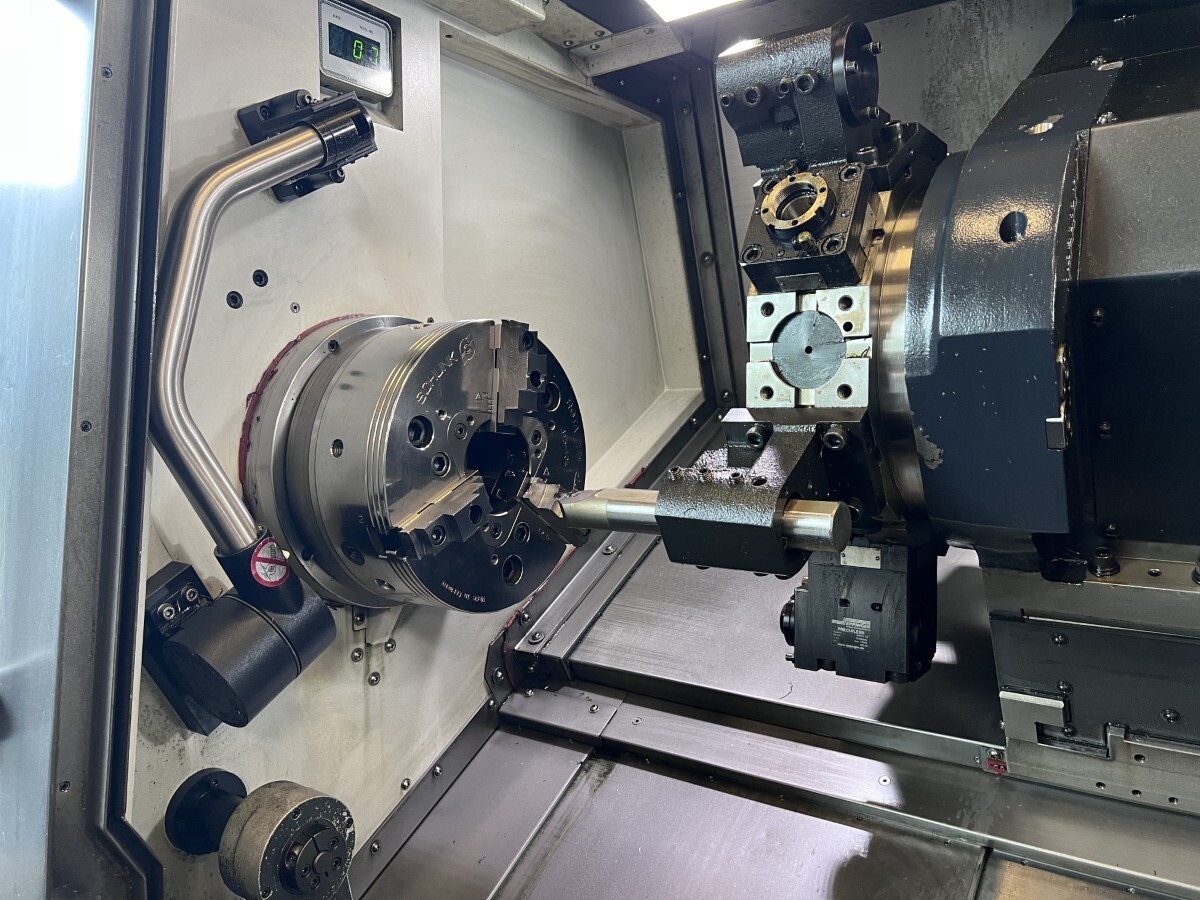

Turret with 12 stations
Taper
BMT65
Tooldrive
5.000 rpm, 7,5 kW, 95,5 Nm
Movement in X/Z
260/1.350 mm
Rapid travers in X/Z
24/30 m/min

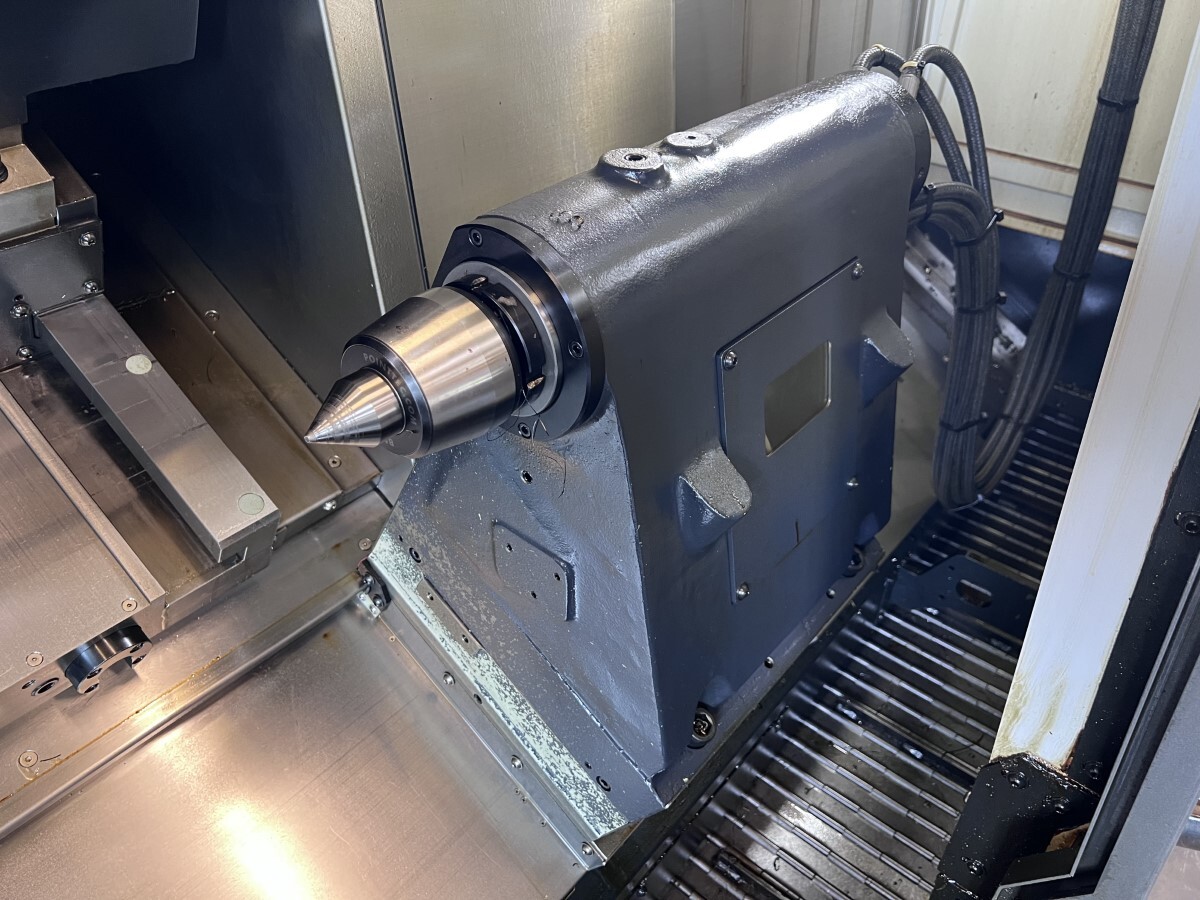

Tailstock:
Technology
Towed Tailstock with hydraulic Sleeve
Stroke
100 mm
Sleeve-ø
100 mm
Cone
MK5
Equipment/Accessory:

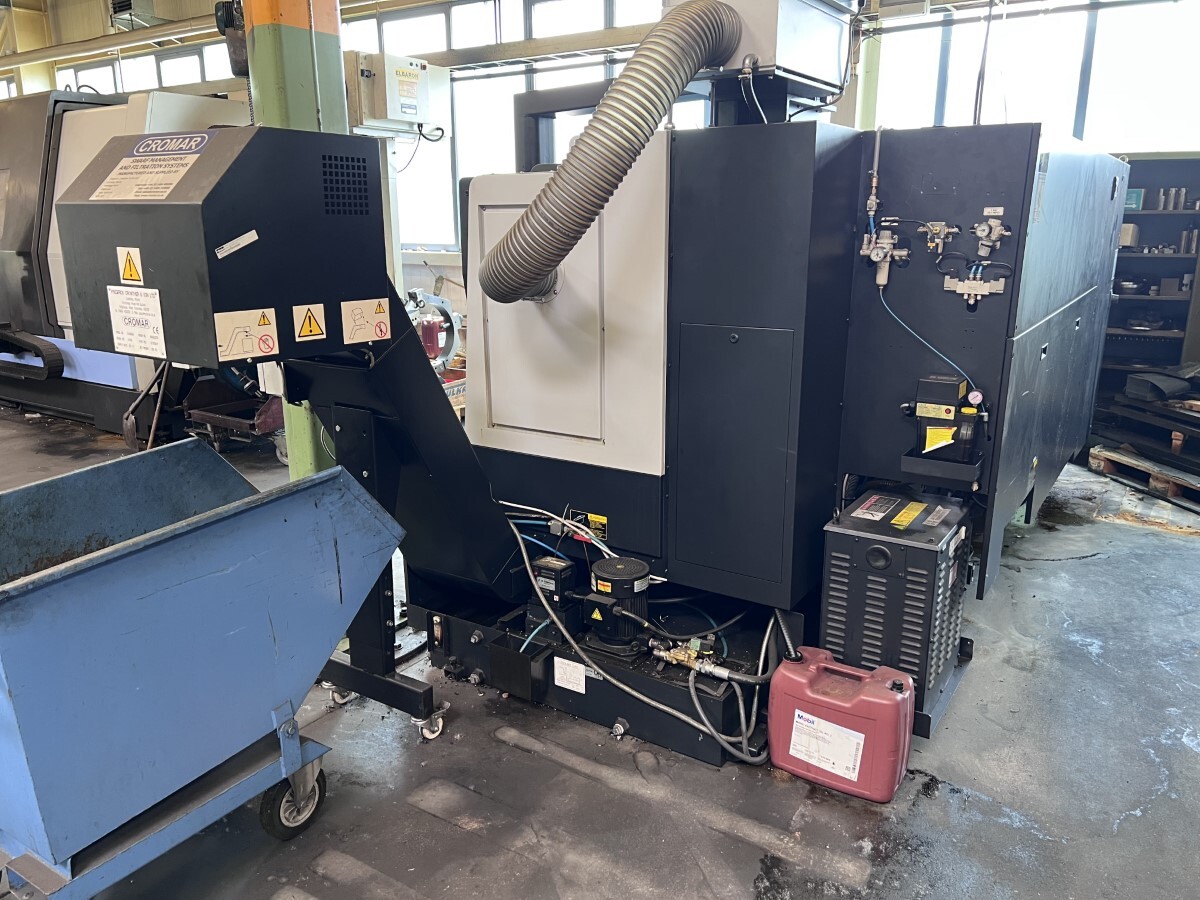

Chipmanagement
Chip conveyor

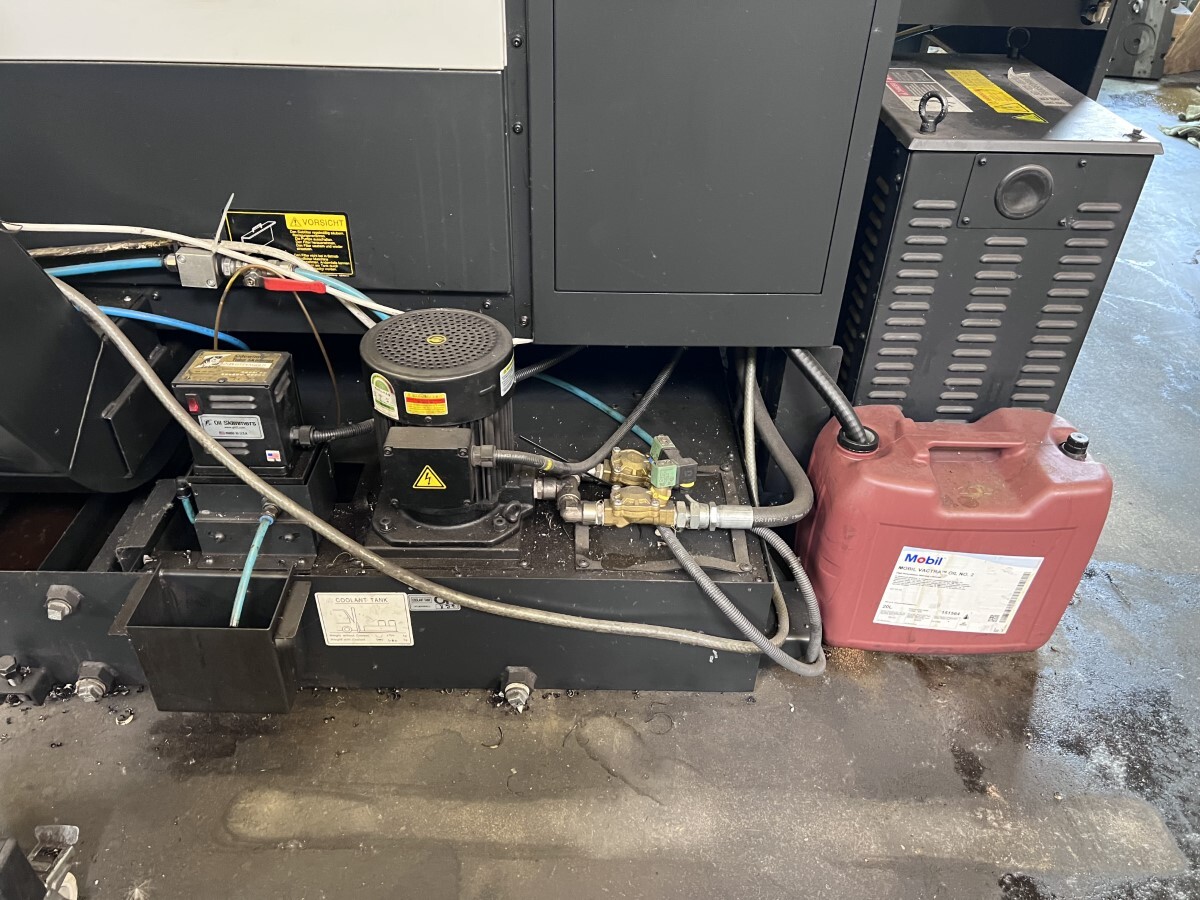

Coolingmanagement
Coolant pump
Toolmeasurement
Measuring arm, Renishaw
Finishedpartremoval
Parts catcher with Box

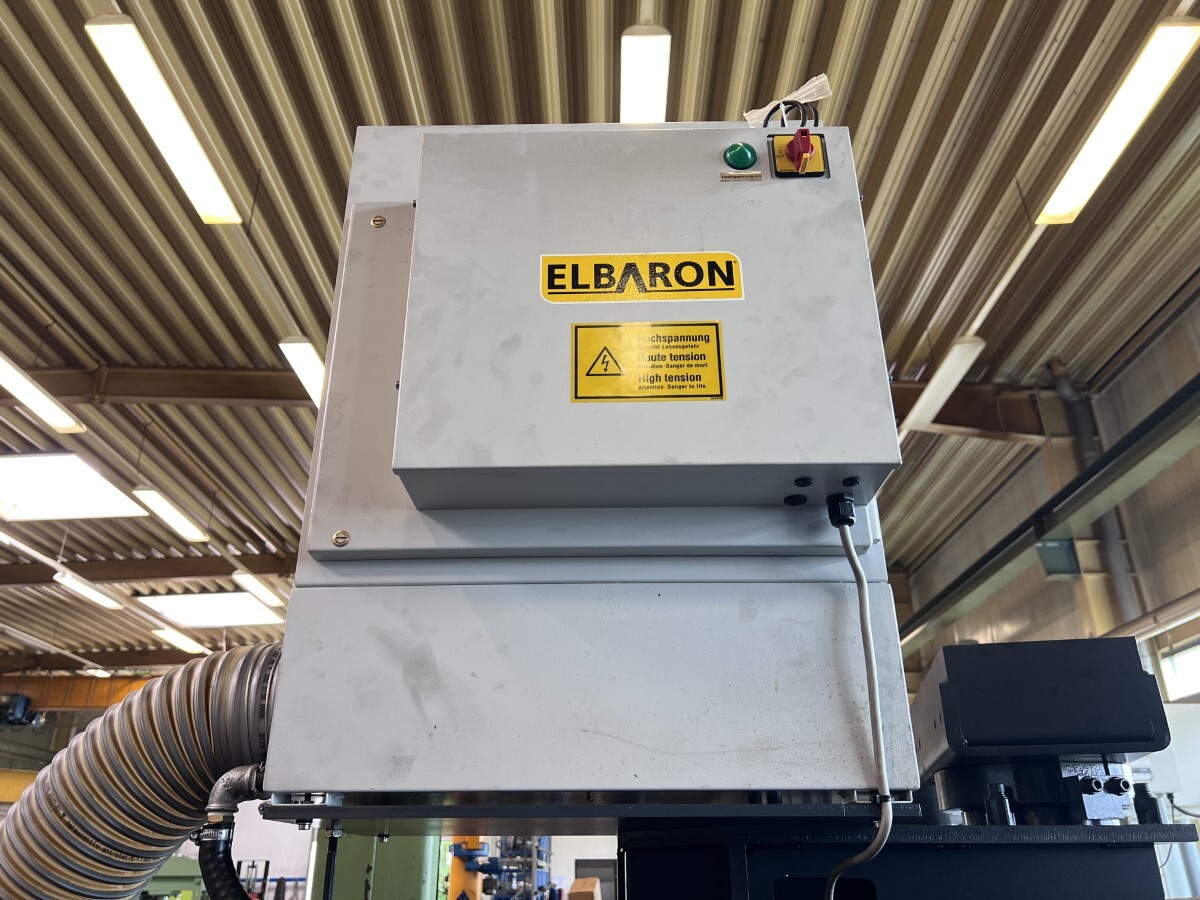

Oilmistseparation
Electrostatic extraction, Elbaron
Toolholder
Misc. static and driven Toolholder.
