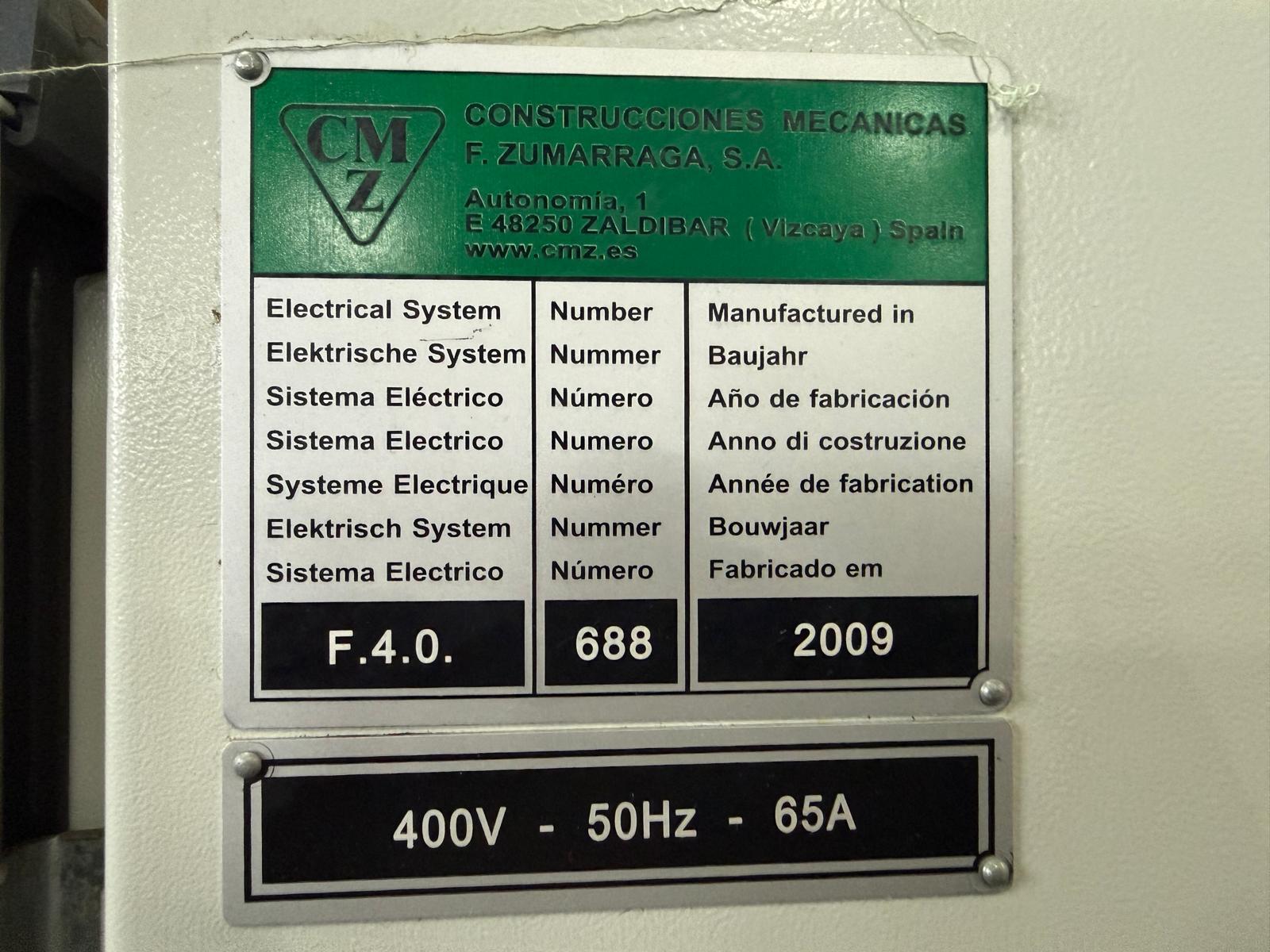

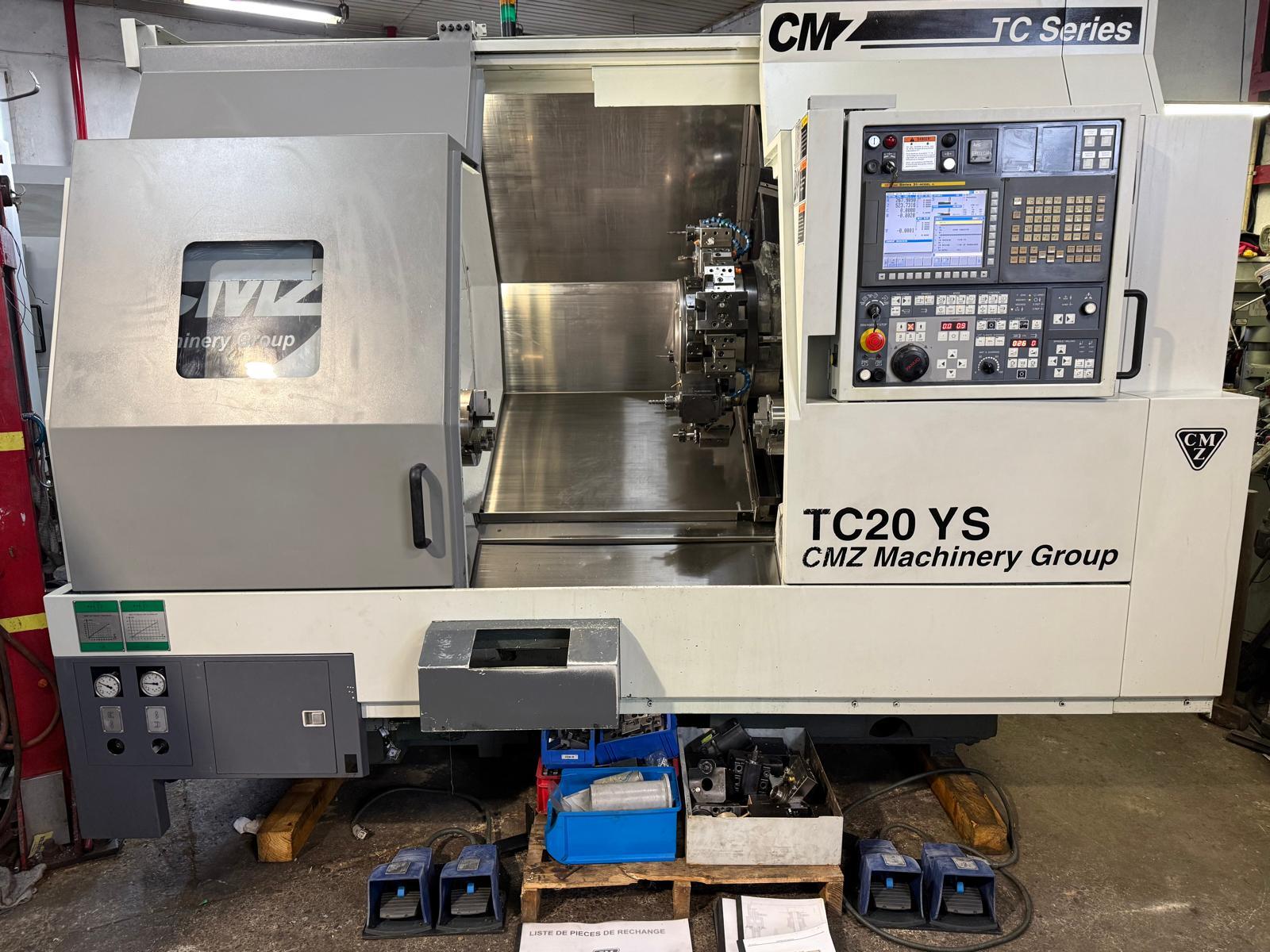

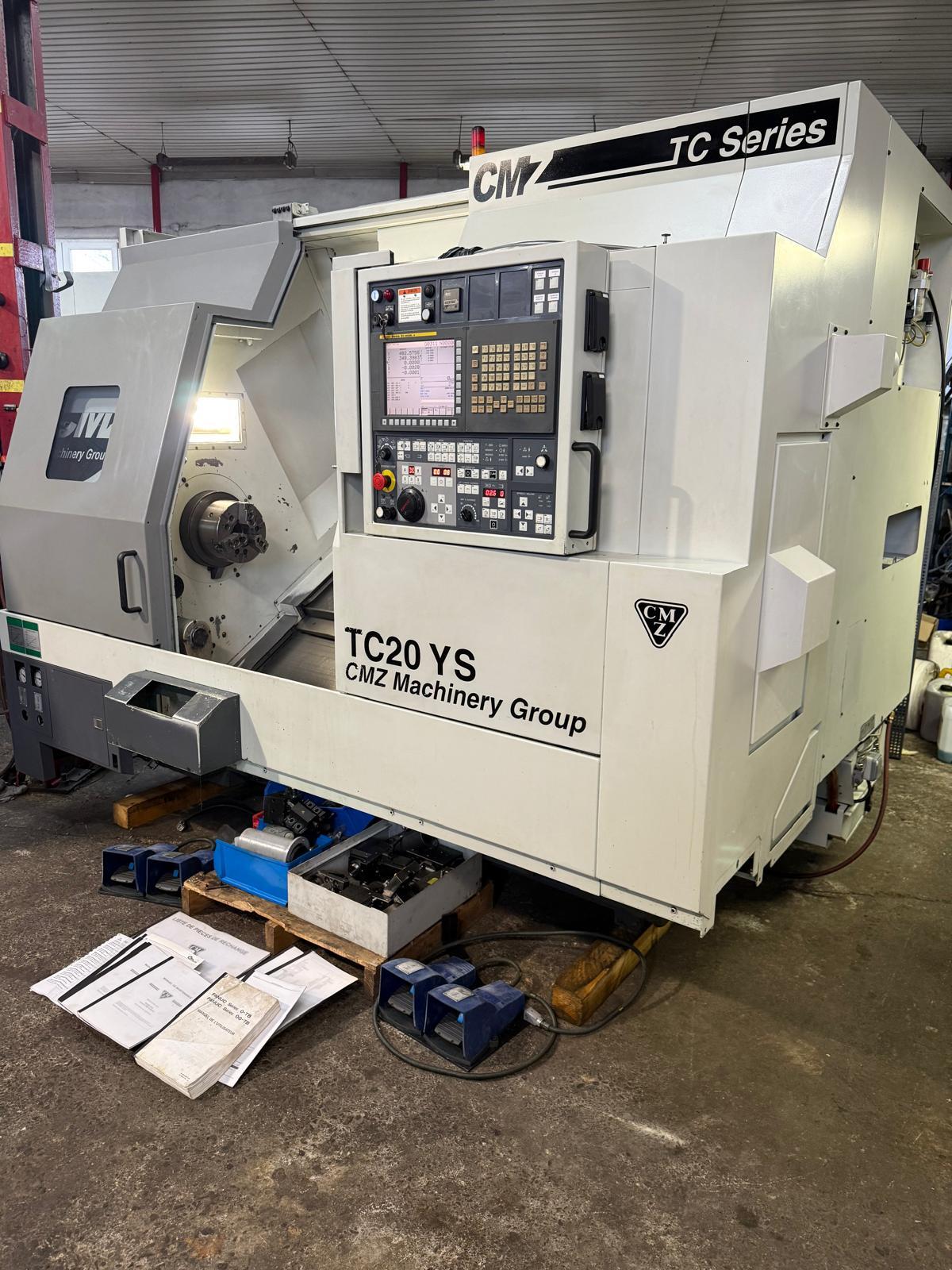

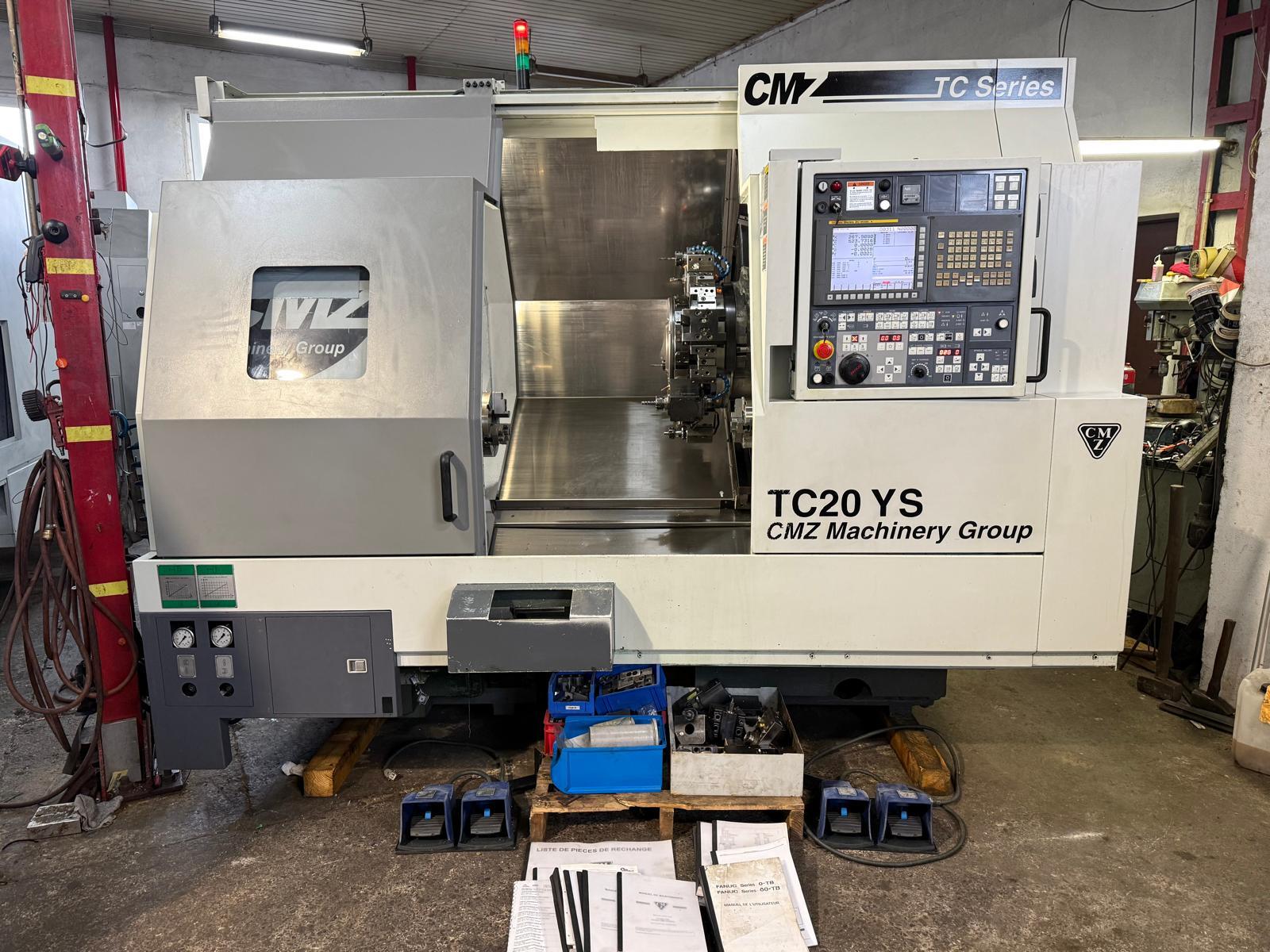

CMZ TC20YS year 2009

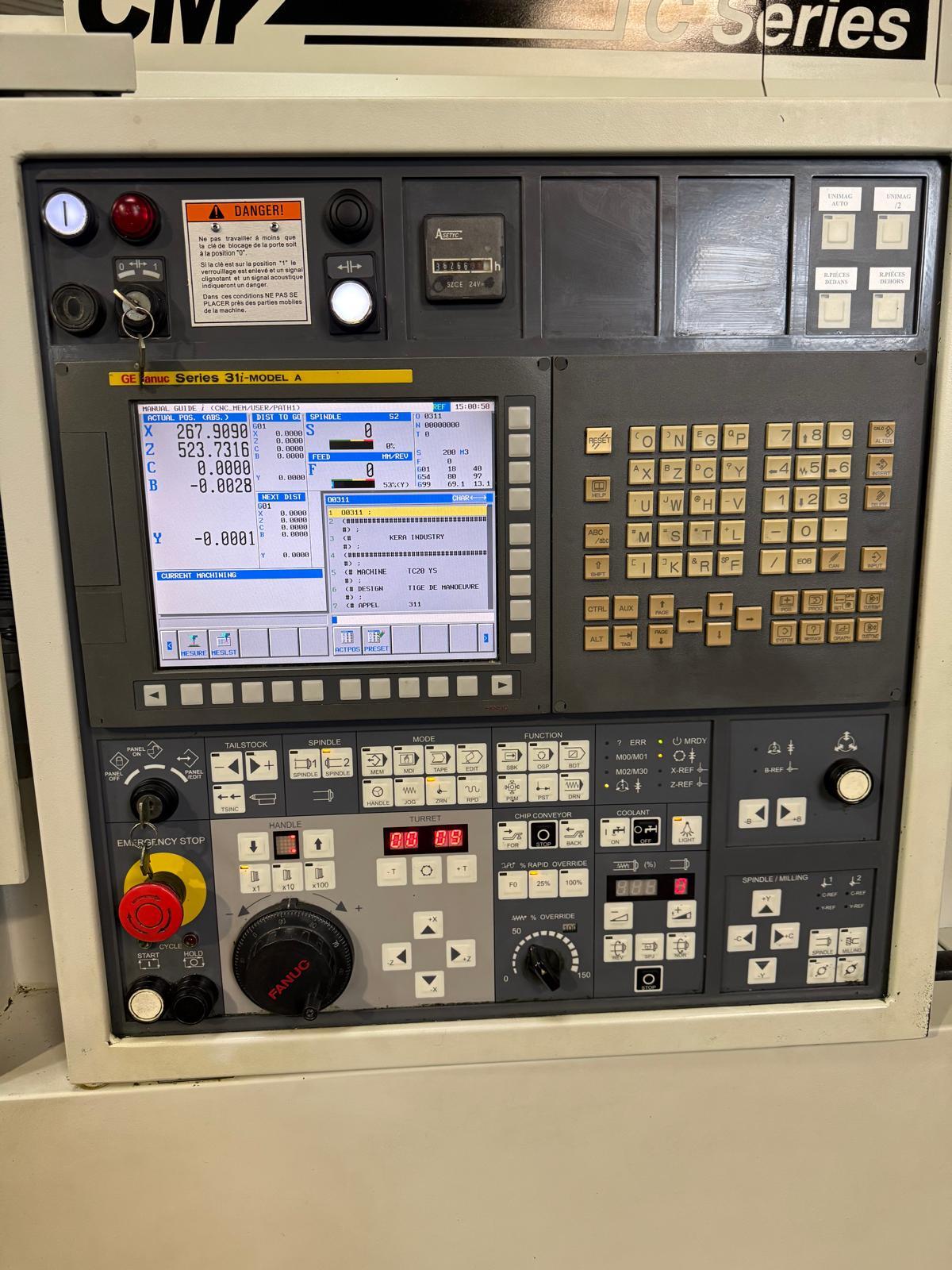

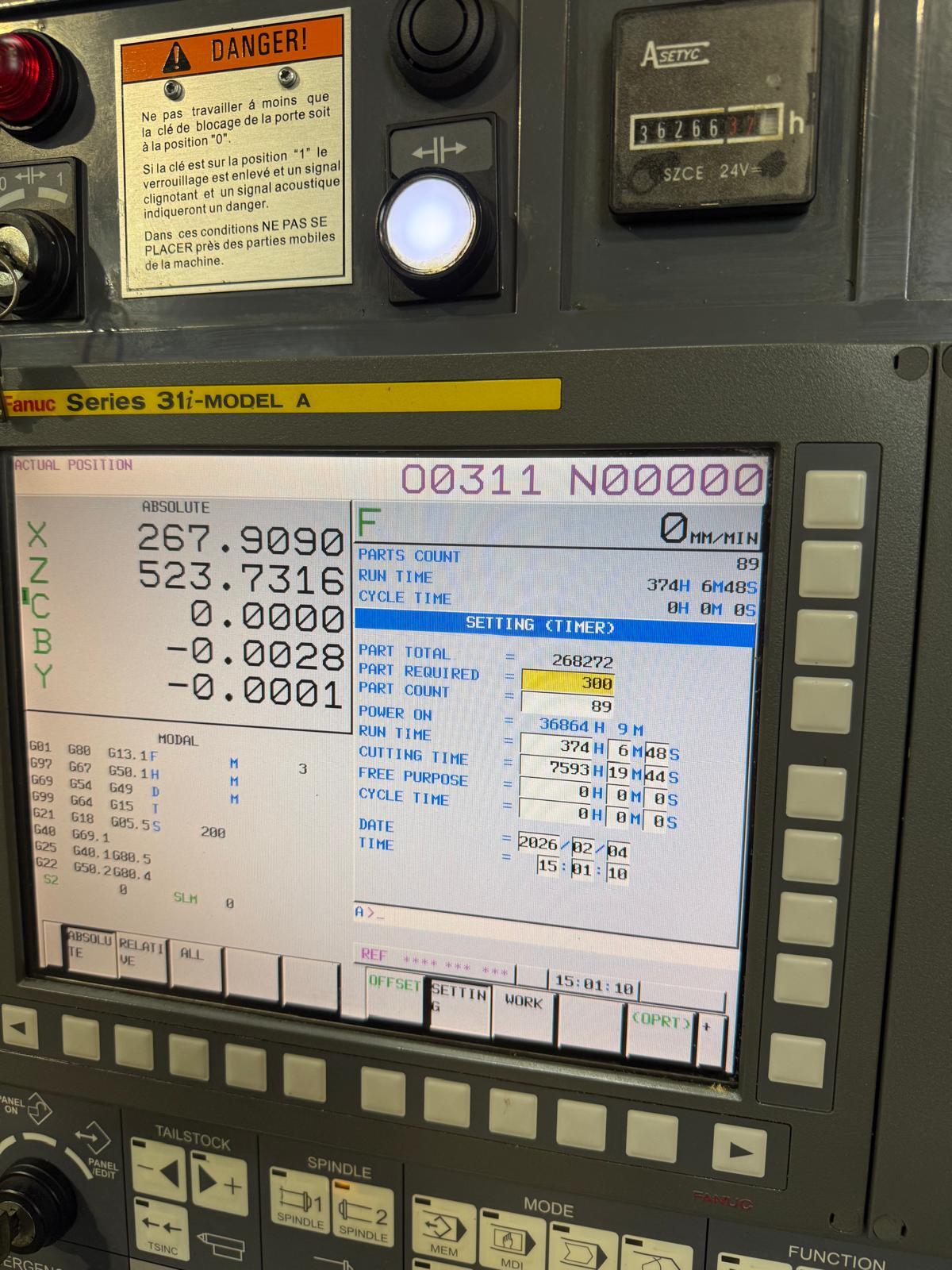

CNC : FANUC 31I model A
Distance between centers : 800 mm
Max swing over bed : 920 mm
Max swing over slide : 745 mm

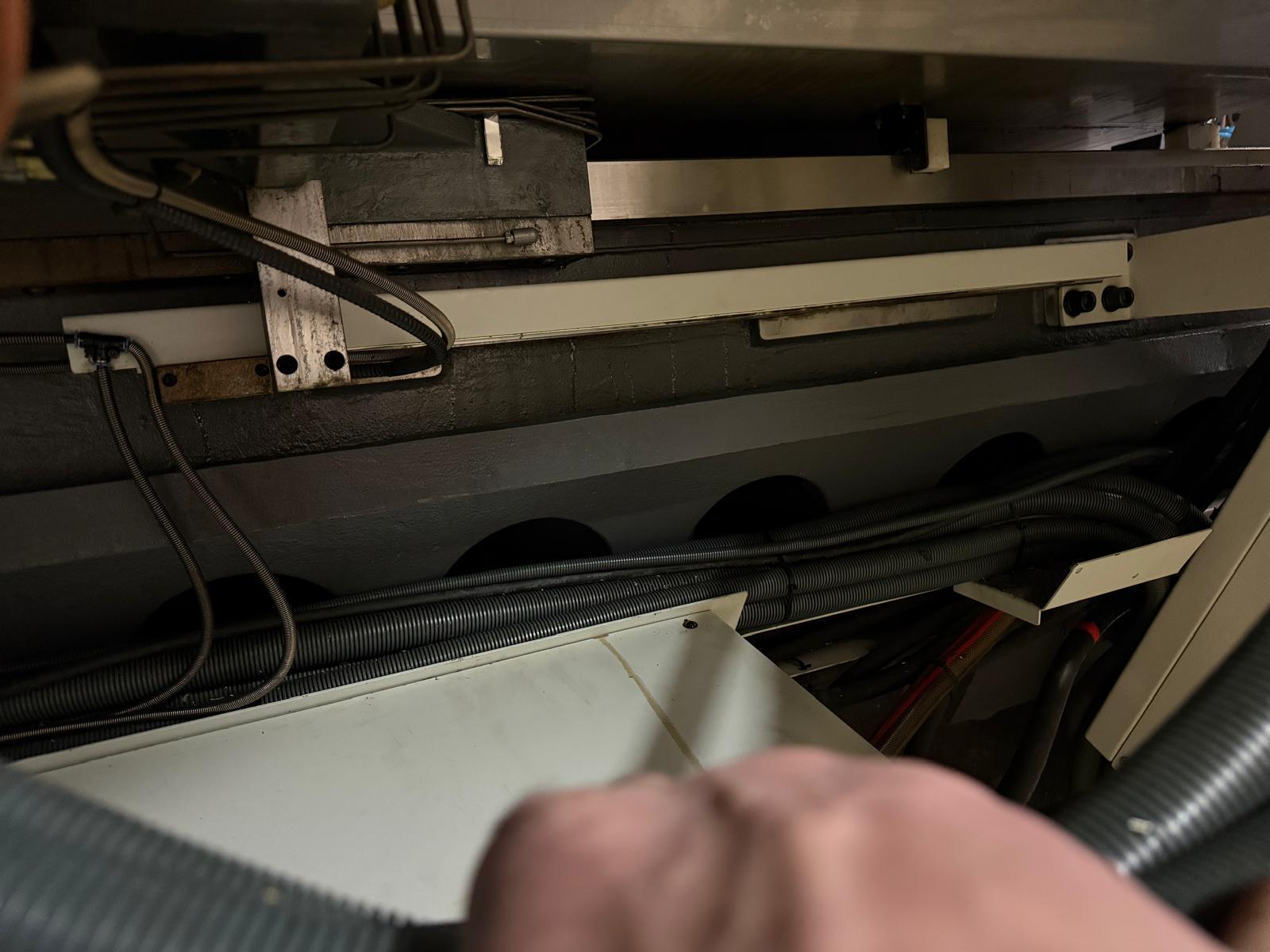

the machine has optical scale heidenhain in the X Y Z axes
travel :
X-315mm
Z-800mm
B-803mm
Y axis :+80 / - 60mm
Ø main spindle bar passage : 66 mm chuck size 210mm
Ø subspindle bar passage: 46mm chuck size 165mm
main spindle Speed : 4000 rpm
sub spindle speed : 5000rpm
milling spindle speed : 4000 rpm

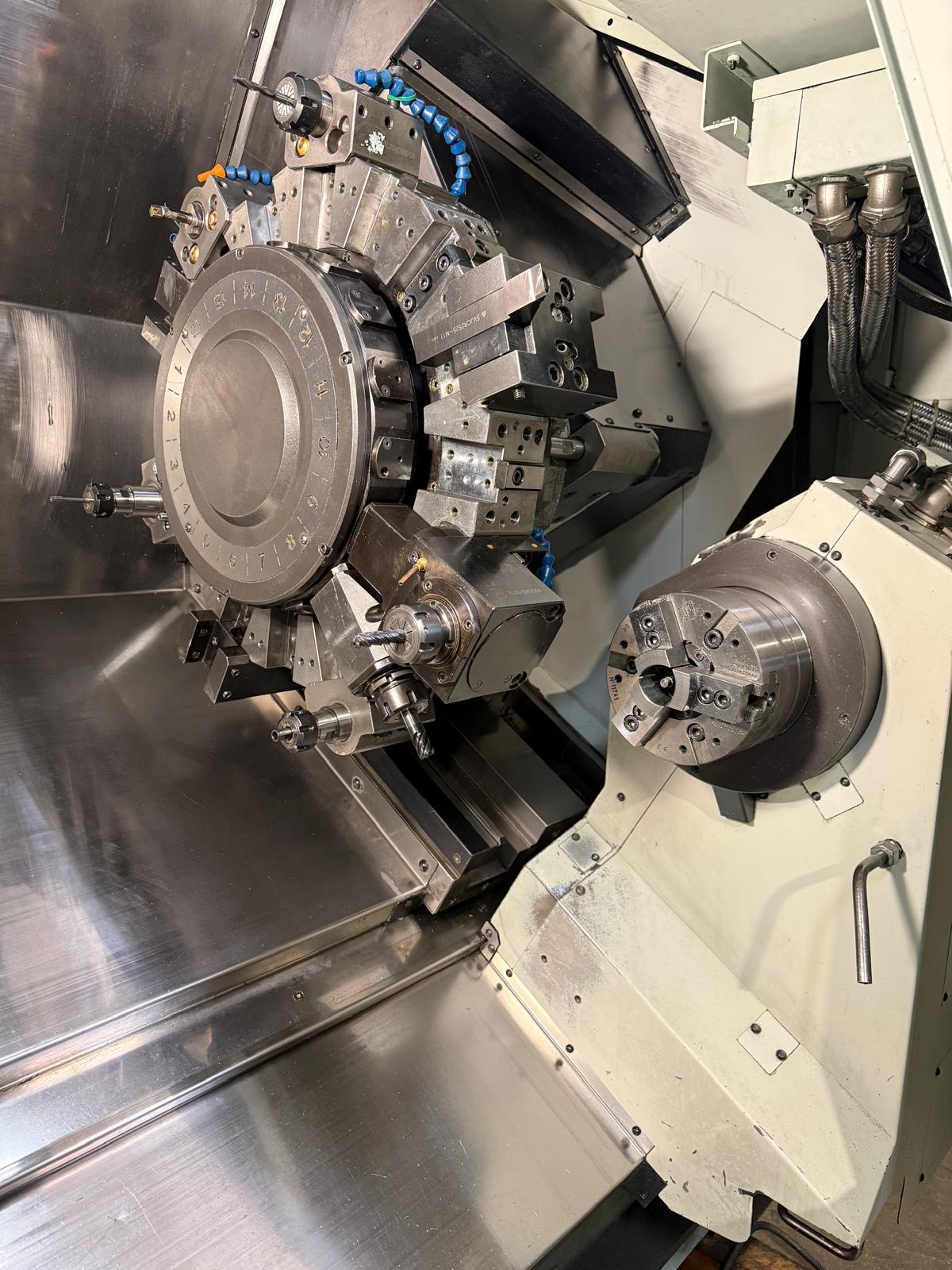

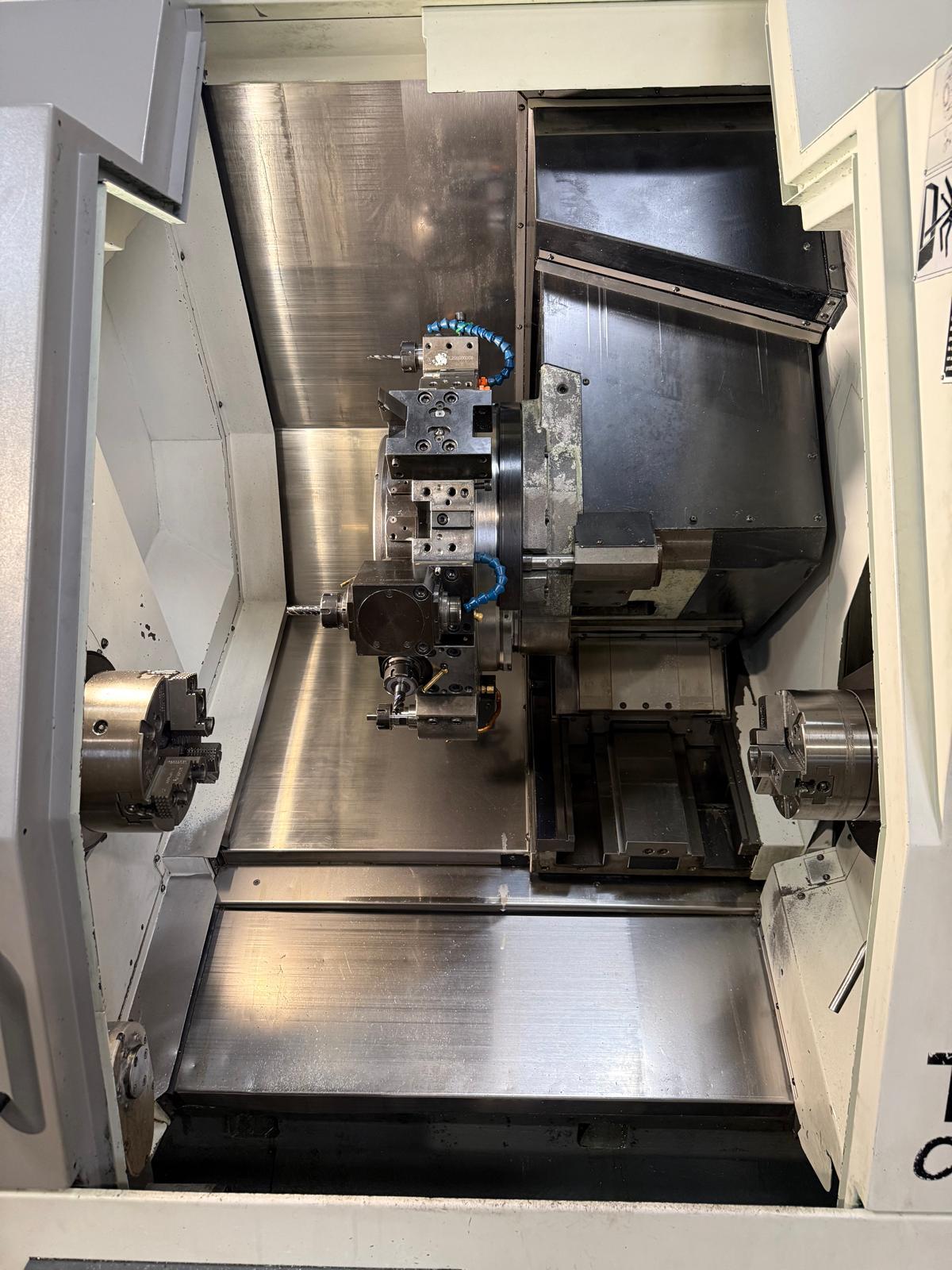

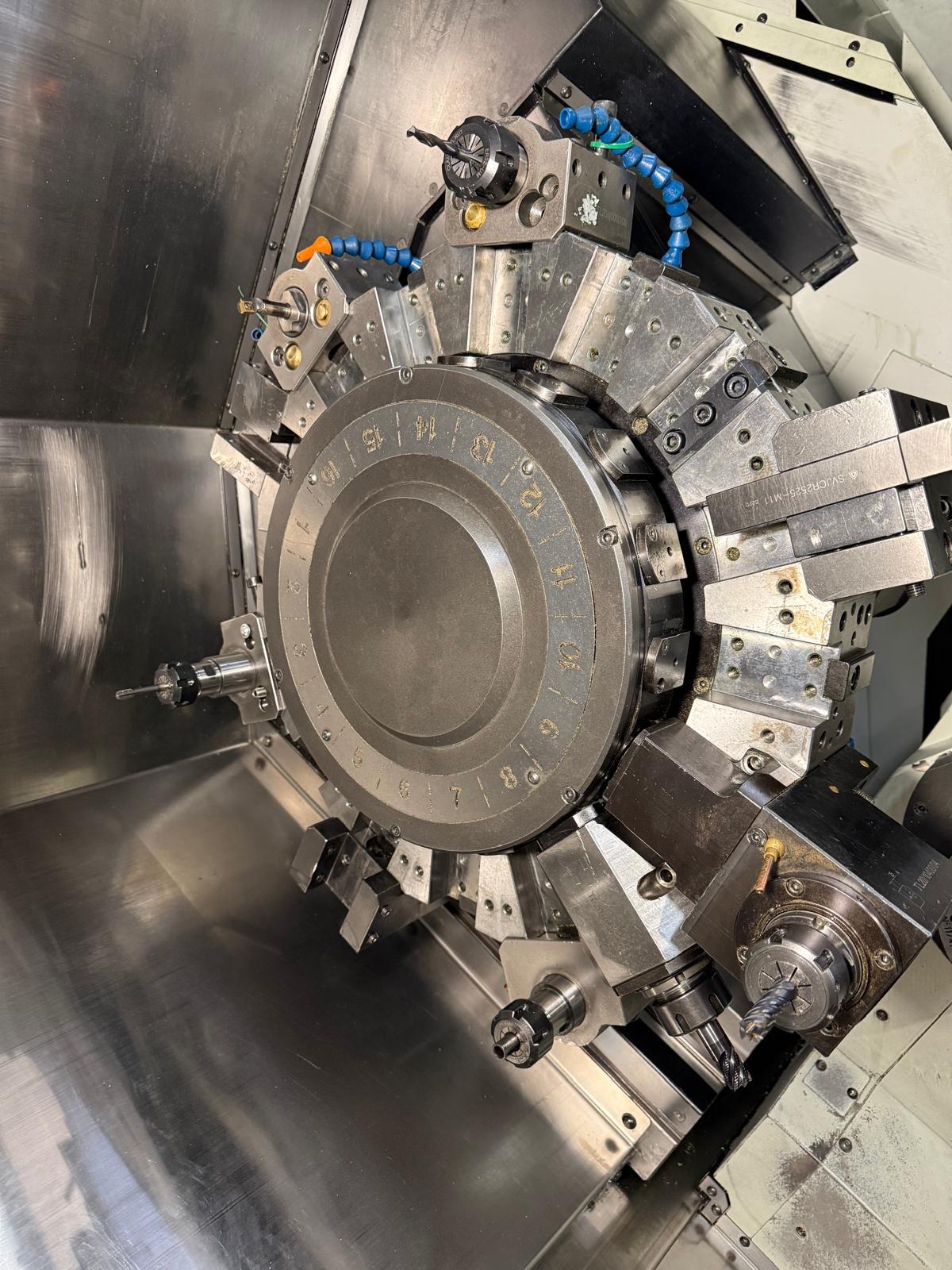

Turret : 16 posts
tool probe renishaw

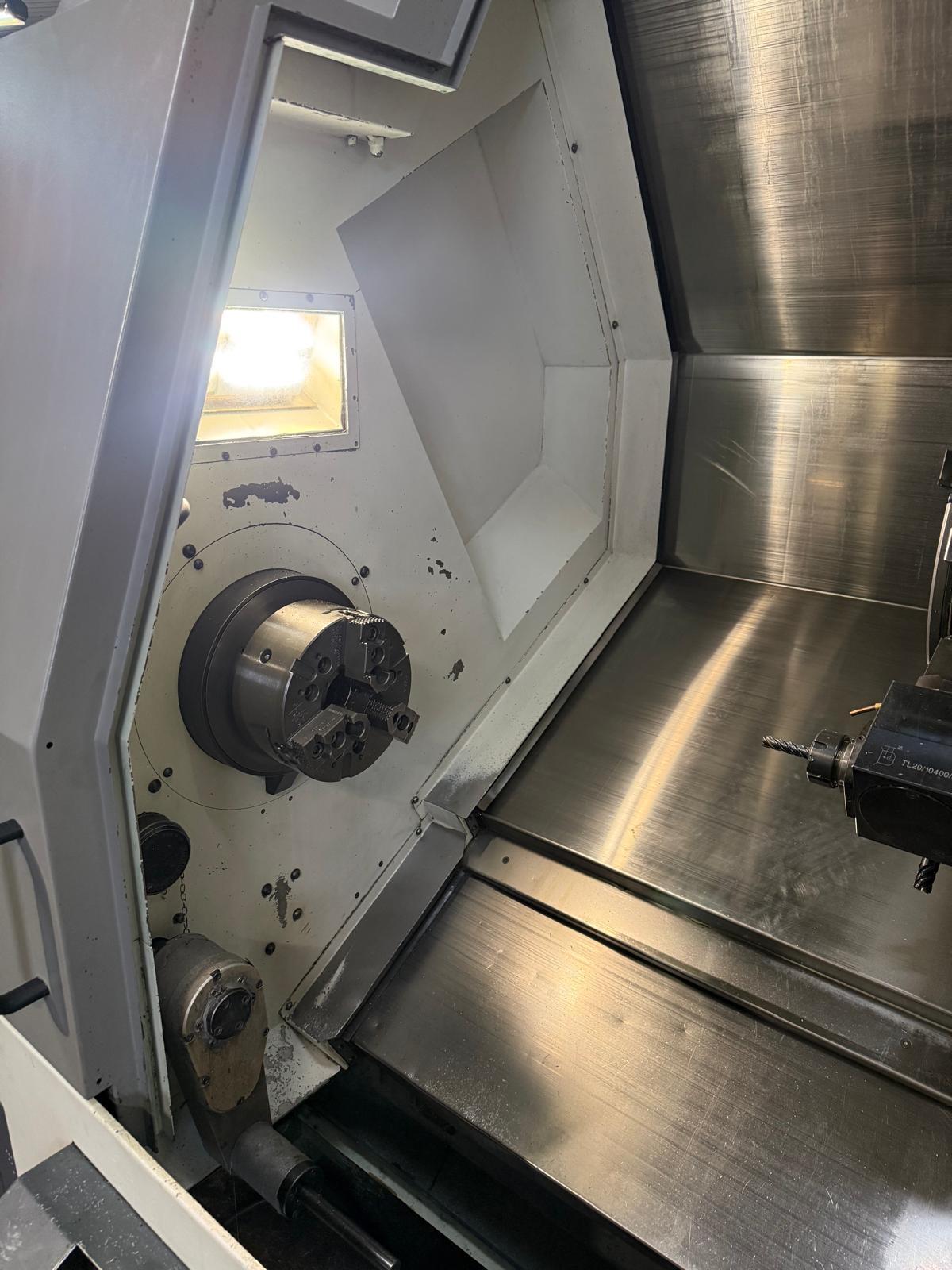

subspindle
with machine :

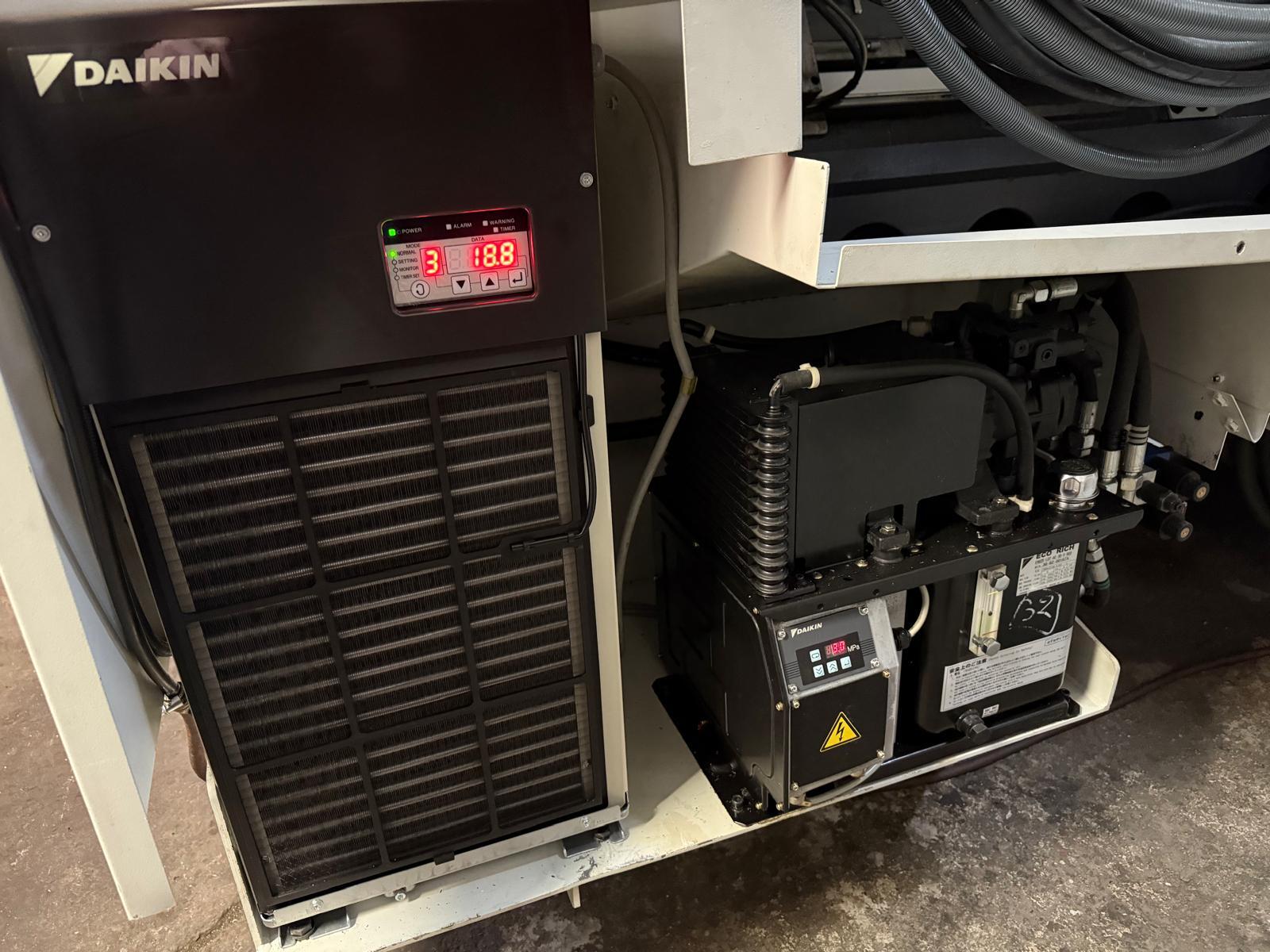

-chip conveyor with coolant tank and pomps

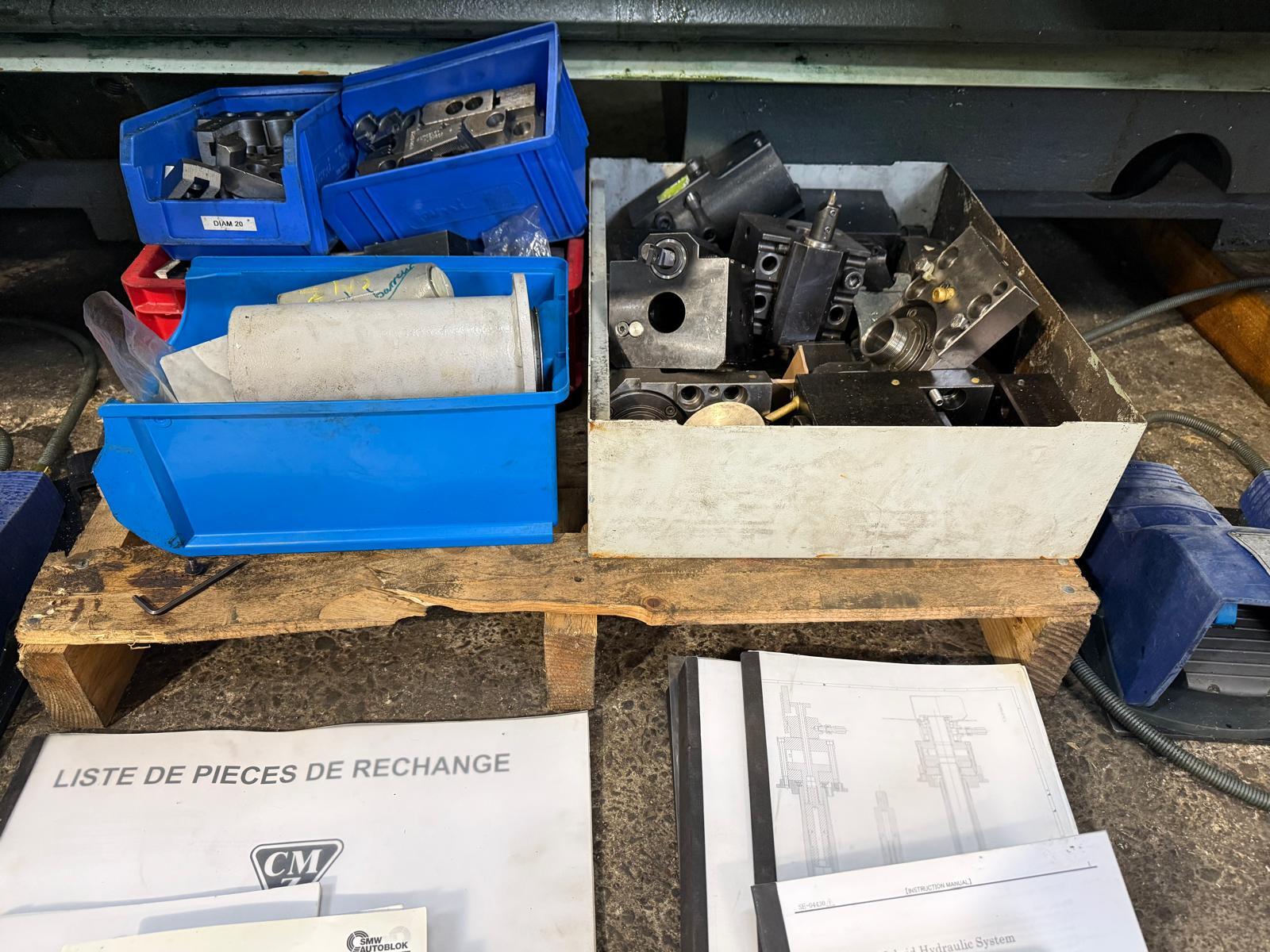

-documentation machine

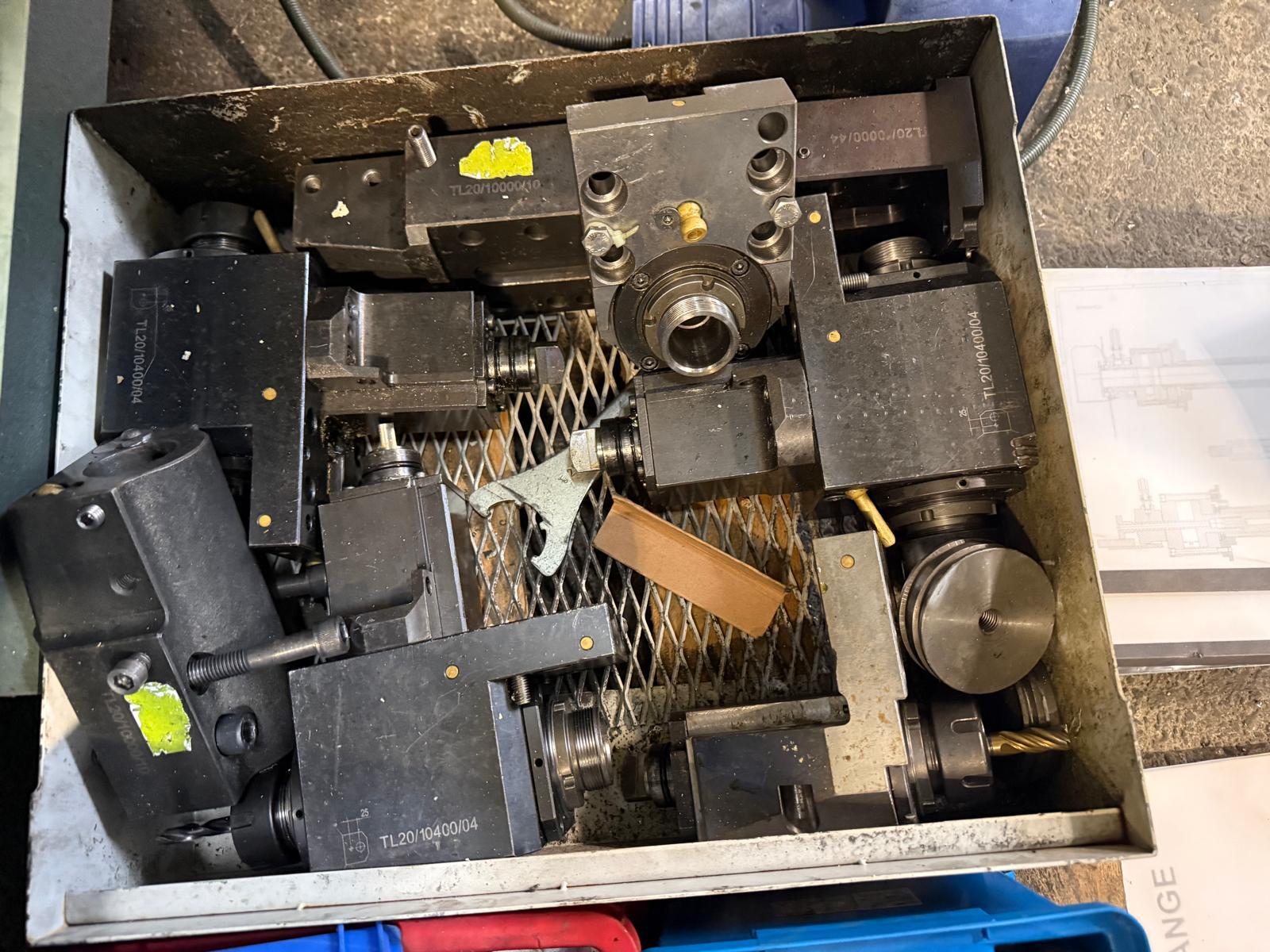

-jaws and tool holders
-live tool holders 6 pieces (2/4)
